Standing Waves Worksheet

Displaying top 8 worksheets found for - Standing Waves. Standing waves on the vibrating strings of a guitar produce the sounds you hear.

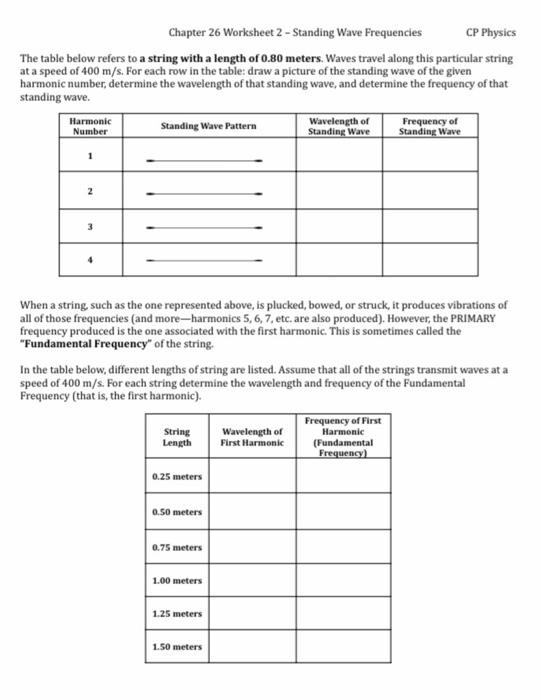

Solved Chapter 26 Worksheet 2 Standing Wave Frequencies Cp Chegg Com

Waves in the air caused by vibrations B.

Standing Waves Worksheet. 249 m 129 Hz 0829 m 387 Hz 0498 m 645 Hz b. The number of ups and downs in a complete wavelength. Measure the effective length of.

Chapter 19 Standing Waves Practice Worksheet A wave that is confined in a space is called a standing wave. Waves that move and wave in the same direction D. This leads to new equation for the standing-wave frequencies.

It is a one end open one end fixed pipe. Standing Waves from 121. Start the wave with a vertical displacement y 0 cm at x 0 cm.

Standing Waves Part 1 Drawing Standing Waves. In this case we get a resonance known as a standing wave. Equipment Wave worksheet found at end of this Exploration Colored pencils three different colors On the top graph of the wave worksheet draw a wave that has an amplitude of 1 cm and a wavelength of 8 cm.

Consider a wave generator that produces 10 oscillations per second. Standing Waves on a String. You can do the exercises online or download the worksheet as pdf.

Types of mechanical waves include a. Knowing the tension linear density and length of the wire is required to. What happens to the wavelength if the frequency of pulses is increased.

Ii Describe an experiment to demonstrate the interference of sound. Waves physics MCQ worksheets with answer other exercises assignments. A standing wave interference pattern is produced in a rope by a vibrator with a frequency of 28 Hz.

Hold a tuning fork over a tube submerged in water and observe that for particular lengths a resonance is heard. Physics P Worksheet 9-4. In the following figure a pulse is sent along a spring.

Draw this wave in pencil. Figure 1 shows the ﬂrst and second set of standing wave patterns for a string held taut. Displaying top 8 worksheets found for - Standing Wave.

Waves can be longitudinal back-and- forth motion or transverse up-and- down motion. Some of the worksheets for this concept are work on standing waves standing waves work standing waves on a string work sound and waves work name score regents physics work interference lesson 4 the physics classroom physics waves work ch21 3 standing waves. IiiThe diagram shows a stationary wave standing wave on.

Standing waves for a pipe that is open at only one end have anti-nodes at the open end and nodes at the closed end. 2 Principle of Superposition When two or more waves are simultaneously present at a single point in space the displacement of the medium at that point is the sum of the displacement due to each individual. In a standing wave each anti-node pne- half of a wavelength.

Standing Waves Physics 9th Grade. Standing waves Harmonies and tone Interference from two sources Beats. Definition Equation Theory.

What is the wavelength of the waves. Theoretically Determine the Fundamental and the Next Two Harmonics for your Wire. Measure the effective length of the tube during the first possible resonance.

____ Sound Waves ____ Standing Waves ____ Transverse Waves ____ Wavelength ____ High Frequency ____ Low Amplitude A. Explain the underlined terms. A Pan pipe is 622 cm long and has a wave speed of 321 ms.

Standing Waves online worksheet for Matriculation. Standing Waves and Sound Waves are vibrations jiggles that move through a material Frequency. What kind of wave a standing wave is.

Standing Waves Worksheet Show your work clearly on a separate page if necessary. Start each solution with a fundamental concept equation written in symbolic variables. How often a piece of material in the wave moves back and forth.

Some of the worksheets for this concept are Superposition and standing waves Standing waves work Standing waves Lab slinkies and waves Physics waves work solutions Harmonic motion waves and sound wave models 21 10 standing waves in pipes Name box score date ap physics work 11 chapter. The wave speed and string length the reflected wave will be in phase with new waves from the source. A pipe that is open at both ends is 24 m long.

Quiz Worksheet Goals. Standing waves are TRAPPED between boundaries so we show both the crest and the trough in the same place at the same time. In reality though it alternates.

When we are at a resonant frequency the wave amplitude grows much larger than it would be for just a single wave and the pattern seen on the string is. We can satisfy this condition with standing waves in which an odd integer number of quarter-wavelengths fit in the pipe as shown in parts d f of Figure 2125. Speed of sound standing waves in tubes lab.

In this worksheet we will practice describing the structures of standing waves that can form by resonance with objects of different lengths. What is the wavelength of a sound wave that has a frequency equal. PHYSICS 11 WAVES WORKSHEET 2 Refer to your notes and Chapters 14-15 of the text to answer the following questions.

The distance between one wave and the next wave E. Draw the first three harmonics of vibration on the pipe below and calculate the wavelength and frequency for each. In this set of quiz and worksheet questions youll measure your understanding of.

Waves that move in one direction but wave in another direction C. Going up and down just like a jump rope. Standing waves occur when there is no left or right motion.

Solve for the unknown variable in a step-by step sequence. 2 Standing Waves of the wave patterns. Waves MCQ Worksheet with answer set 1.

Stationary standing waves 2004 Question 8 Ordinary Level i Sound from a vibrating object can cause diffraction and interference. How often a. The speed of the waves is 3000 cms.

Standing waves are also present inside the chamber of a wind instrument. Frequencies producing standing waves are resonant frequencies. Make a sketch of the problem.

The speed of waves on the string is 15 ms and the length of the string. A standing wave with 3 antinodes oscillates on a string. Some of the worksheets for this concept are Standing waves work Standing waves on a string work Sound and waves work Physics work lesson 22 vibrations and waves Lesson 4 the physics classroom Name date period Standing waves Physics 1120 standing waves and sound level solutions.

Standing waves worksheet answersV 6 25m 10. CUsersDave PatrickDocumentsLabs Activity Standing Waves Standing Waves Activity rev 3docx Part II.
